For sensitive laboratory equipment such as a microscope, a sturdy outer box is not enough. The stage, objective turret, eyepieces and removable accessories must not move in transit, but parts that the manufacturer says not to lock must not be forced. Start with the model-specific handling guide and test the pack under representative shipping conditions.
Follow manufacturer handling instructions
Transport locks, accessories to remove and restraint points vary by model. Before packing, check the manufacturer’s instructions for orientation, power cables and moving parts. Improvised restraint of a stage or optical head can damage a precision mechanism.
Use suitable dust covers for optical surfaces. Protect objectives and eyepieces separately; do not apply adhesive tape directly to optical glass.

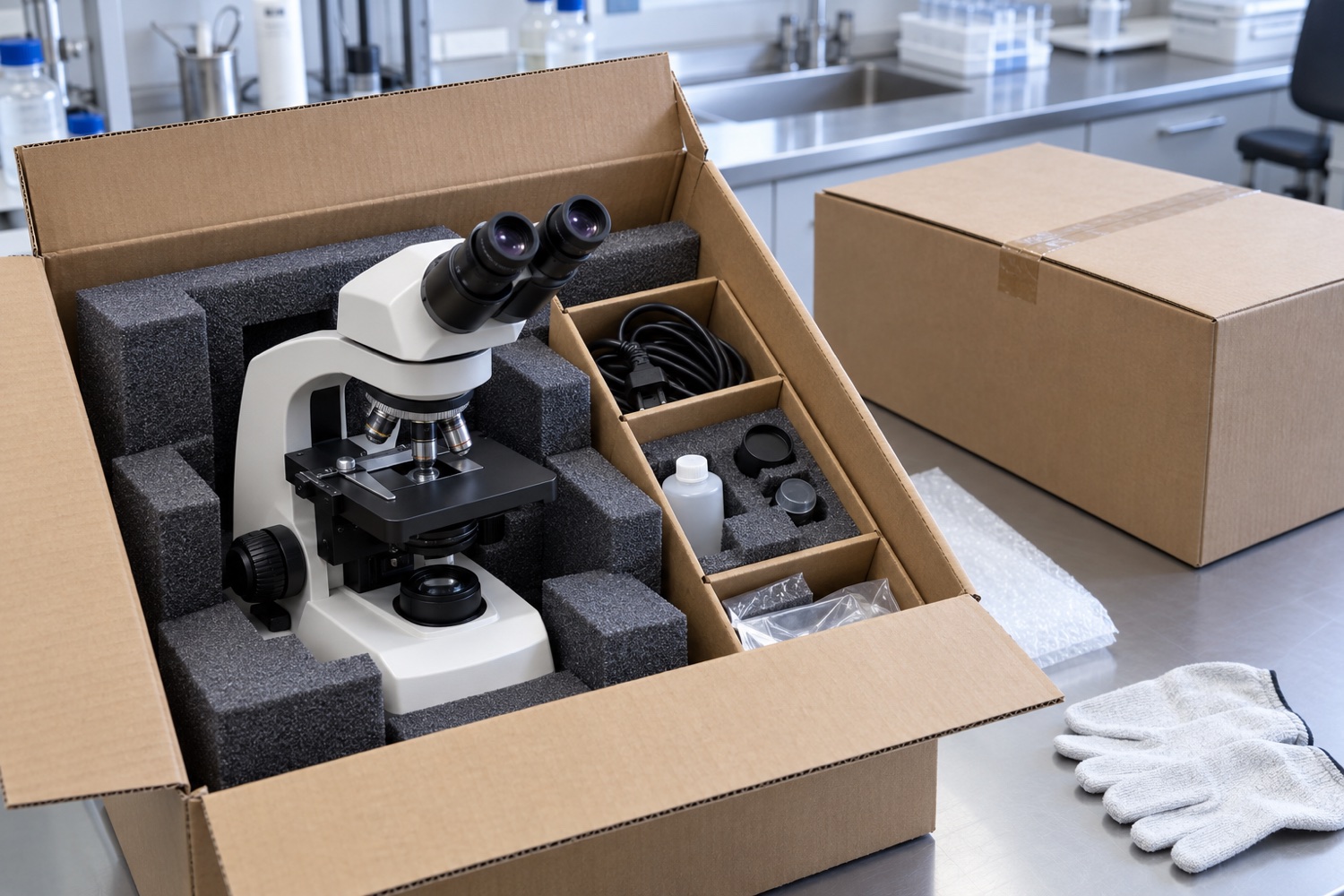

Design internal supports and accessory storage
Use a fitted support that captures the instrument at its base and body support points. It should carry the centre of gravity and limit vertical and lateral movement. Choose foam or other cushioning in line with manufacturer advice and cleanliness requirements.
Secure the power supply, cables, camera adapter and small parts in separate compartments. Accessories should not be left loose where they can strike the instrument. The top insert must not press on the optical head when the carton is closed.
Choose the outer carton, marks and orientation
The outer carton should surround the inserts, control voids and suit the shipment weight. Seal all closure seams with packing tape, and consider the service team’s opening procedure if the box will be reopened.
Add orientation and fragile-content marks according to carrier instructions. Marks do not replace internal restraint or impact protection. For pallet shipments, stack cartons level and within the pallet footprint.
Validate pack performance and delivery
Prepare initial packs using a standard work instruction; use a controlled tilt, carry and opening trial to check for movement. For high-value or very sensitive devices, select a suitable packaging test with a qualified specialist.
At receipt, inspect impact damage, opened seams, missing accessories and movement in the optical assembly or stage. Matching a packing photograph to the serial number and accessory list can support service and damage reviews.
Sources and further reading
Accessed 28 October 2026. Follow current manufacturer, carrier and applicable regulatory instructions for the actual shipment.
Review packaging for your process
Share product dimensions, pack configuration and shipping route so suitable packaging options can be reviewed.
Frequently asked questions
Should objectives be removed and shipped separately?
That depends on the model and manufacturer instructions; do not remove or restrain components without guidance.
Can there be empty space in a microscope carton?
Avoid voids that allow movement, while ensuring inserts hold the device without pressure on delicate parts.
Is a fragile label enough protection?
No. It is a handling notice; internal restraint and impact protection are still required.
